Product Summary

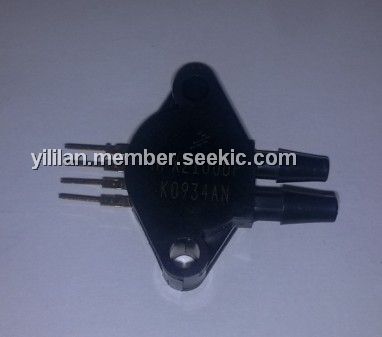

The mpx2100dp is a silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The chip is laser trimmed for precise span and offset calibration an temperature compensation. The applications of the mpx2100dp are (1)Pump/Motor Controllers; (2)Robotics; (3)Level Indicators; (4)Medical Diagnostics; (5)Pressure Switching; (6)Barometers.
Parametrics
mpx2100dp absolute maximum ratings: (1)Maximum Pressure (P1 > P2) Pmax: 400 kPa; (2)Storage Temperature Tstg: -40 to +125℃; (3)Operating Temperature TA: -40 to +125℃.
Features
mpx2100dp features: (1)Temperature Compensated Over 0 to +85℃; (2)Available in Absolute, Differential and Gauge Configurations; (3)Easy to Use Chip Carrier Package Options; (4)Ratiometric to Supply Voltage; (5)±0.25% Linearity (MPX2100D Series).

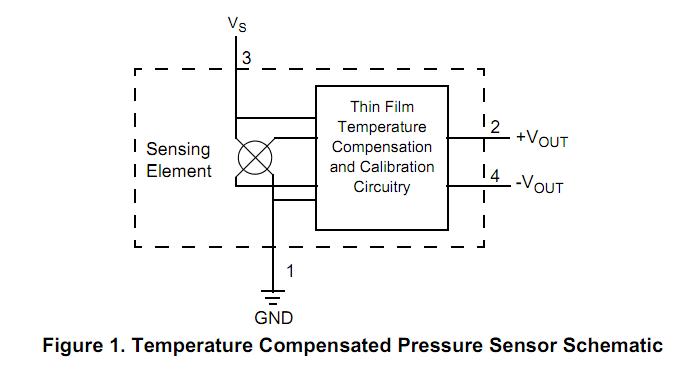

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPX2100DP |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN COMP 100KPA |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MPX200 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MPX2010 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
MPX2010D |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN COMP 10KPA |
Data Sheet |
|
|
||||||||||||
|
MPX2010DP |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN COMP 10KPA |
Data Sheet |
|
|
||||||||||||
 |
MPX2010GP |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN COMP 10KPA |
Data Sheet |
|
|
||||||||||||
 |
MPX2010GS |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN COMP 10KPA |
Data Sheet |
|
|
||||||||||||
