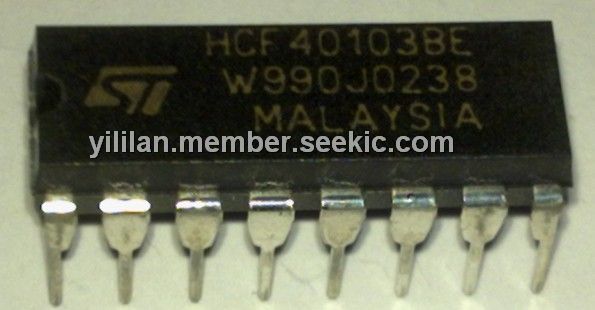

Product Summary

The HCF40103BE is an 8 Bit binary down counter fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. The HCF40103BE consists of an 8-stage synchronous down counter with a single output that is active when the internal count is zero. This device contains a single 8-bit binary counter. The HCF40103BE has control inputs for enabling or disabling the clock, for clearing the counter to its maximum count, and for presetting the counter either synchronously or asynchronously.

Parametrics

HCF40103BE absolute maximum ratings: (1)VDD Supply Voltage: -0.5 to +22 V; (2)VI DC Input Voltage: -0.5 to VDD + 0.5 V; (3)II DC Input Current: ± 10 mA; (4)PD Power Dissipation per Package: 200 mW; (5)Power Dissipation per Output Transistor: 100 mW; (6)Top Operating Temperature: -55 to +125℃; (7)Tstg Storage Temperature: -65 to +150℃.

Features

HCF40103BE features: (1)synchronous or asynchronous preset; (2)medium -speed operation: fCL =3.6MHz (Typ.) at VDD = 10V; (3)cascadable; (4)quiescent current specif. up to 20V; (5)5V, 10V AND 15V parametric ratings; (6)input leakage current= 100nA (MAX) at VDD = 18V TA = 25℃; (7)100% Tested for quiescent current ; (8)meets all requirements of jedec jesd13b standard specifications for description of b series CMOS devices.

Diagrams

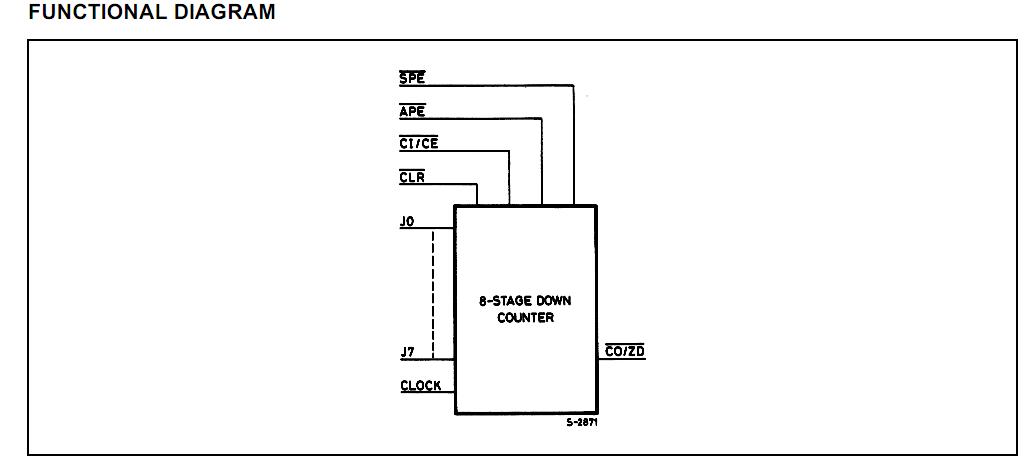

HCF40103BE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCF40103BEY
HCF40103BEY

STMicroelectronics

Counter Shift Registers 8-Bit Bin Down Cntr

Data Sheet

0-1: $0.43
1-10: $0.36
10-100: $0.27
100-250: $0.23
