Product Summary

The a29l040l-70f is a 3.0 volt-only Flash memory organized as 524,288 bytes of 8 bits each. The 512 Kbytes of data are further divided into eight sectors of 64 Kbytes each for flexible sector erase capability. The 8 bits of data appear on I/O0 - I/O7 while the addresses are input on A0 to A18. The a29l040l-70f is offered in 32-pin PLCC, TSOP (8mm x 20mm) or sTSOP (8mm x 14mm) packages. This device a29l040l-70f is designed to be programmed in-system with the standard system 3.0 volt VCC supply. Additional 12.0 volt VPP is not required for in-system write or erase operations. However, the a29l040l-70f can also be programmed in standard EPROM programmers.

Parametrics

a29l040l-70f absolute maximum ratings: (1)Storage Temperature Plastic Packages: 0 to + 70℃; (2)Ambient Temperature with Power Applied: 0 to + 70℃; (3)Voltage with Respect to Ground, VCC: -0.5V to +4.0V; A9 &OE: -0.5 to +12.5V; All other pins: -0.5V to VCC + 0.5V; (4)Output Short Circuit Current: 200mA.

Features

a29l040l-70f features: (1)Single power supply operation; (2)Access times: 70 (max.); (3)Current: 4 mA typical active read current ; 20 mA typical program/erase current; 200 nA typical CMOS standby; 200 nA Automatic Sleep Mode current; (4)Flexible sector architecture; (5)Embedded Erase Algorithms; (6)Typical 100,000 program/erase cycles per sector; (7)20-year data retention at 125℃; (8)Compatible with JEDEC-standards; (9) Data Polling and toggle bits; (10)Erase Suspend/Erase Resume; (11)Package options: 32-pin DIP, PLCC, TSOP (8mm × 20mm) or sTSOP (8mm × 14mm) .

Diagrams

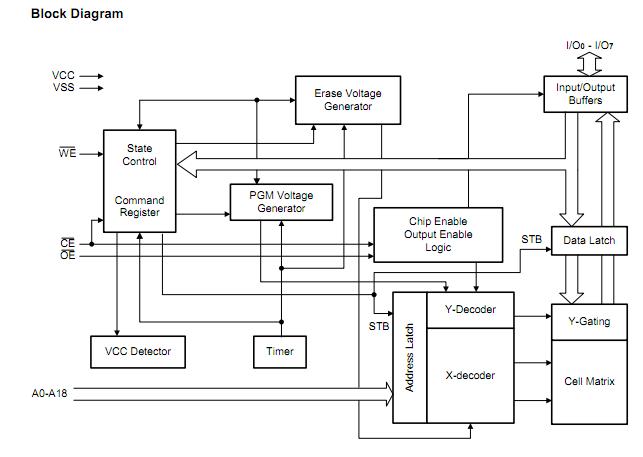

a29l040l-70f block diagram
