Product Summary
The 74alvchs162830dfg is a 1-bit to 2-bit address driver. It is built using advanced dual metal CMOS technology. Diodes to VCC have been added on the inputs to clamp overshoot. The 74alvchs162830dfg has series resistors in the device output structure which will significantly reduce line noise when used with light loads. This driver has been designed to drive ±12mA at the designated threshold levels. The applications of the 74alvchs162830dfg include SDRAM Modules, PC Motherboards and Workstations.
Parametrics
74alvchs162830dfg absolute maximum ratings: (1)VTERM, Terminal Voltage with Respect to GND: –0.5 to +4.6 V; (2)VTERM, Terminal Voltage with Respect to GND: –0.5 to VCC+0.5 V; (3)TSTG, Storage Temperature: –65 to +150℃; (4)IOUT, DC Output Current: –50 to +50 mA; (5)IIK, Continuous Clamp Current: ±50 mA; (6)IOK, Continuous Clamp Current, VO < 0: –50 mA; (7)ICC, Continuous Current: ±100 mA.
Features
74alvchs162830dfg features: (1)0.5 MICRON CMOS Technology; (2)Typical tSK(o) (Output Skew) < 250ps; (3)ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0); (4)VCC = 3.3V ± 0.3V, Normal Range; (5)VCC = 2.7V to 3.6V, Extended Range; (6)VCC = 2.5V ± 0.2V; (7)CMOS power levels (0.4μW typ. static); (8)Rail-to-Rail output swing for increased noise margin; (9)Available in TVSOP package.

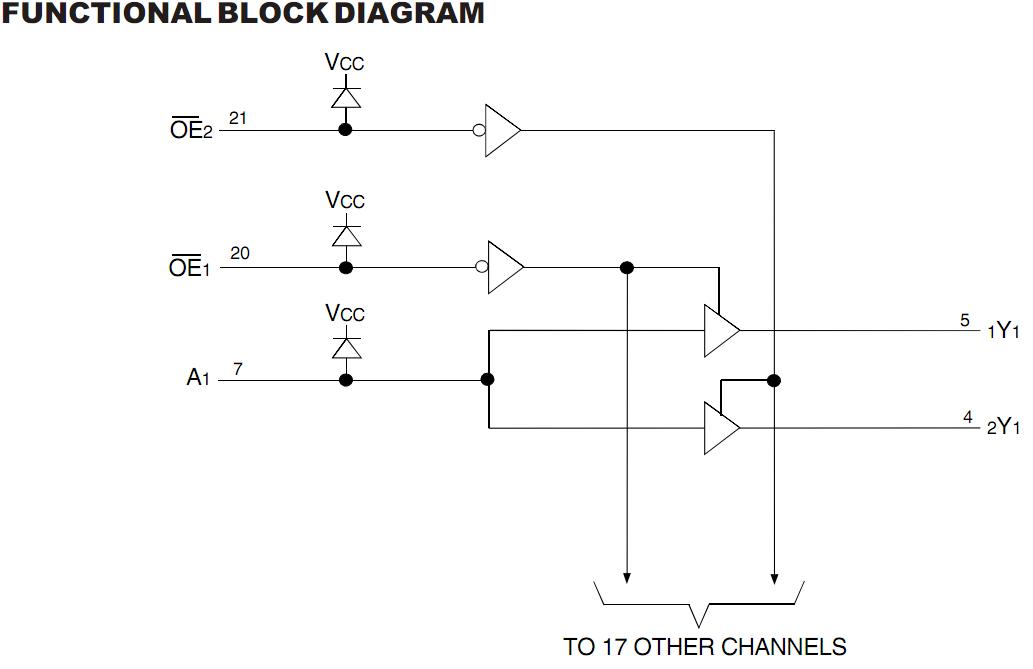

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 74ALVCHS162830DFG |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
74ALVCHS162830DFG8 |
Other |
|
Data Sheet |
Negotiable |
|
||||
