Product Summary

The max709lcsa is a Power-Supply Monitor with Reset. The max709lcsa provides a system reset during power-up, power-down, and brownout conditions. When VCC falls below the reset threshold, RESET goes low and holds the uP in reset for 140ms min after VCC rises above the threshold. The applications of the max709lcsa are Minimum Component Count, Low-Cost Processor Systems.

Parametrics

max709lcsa absolute maximum ratings: (1)Terminal Voltage (with respect to GND), VCC: -0.3V to 6.0V; RESET: -0.3V to (VCC + 0.3V); (2)Input Current, VCC: 20mA; (3)Output Current, RESET: 20mA; (4)Rate-of-Rise, VCC: 100V/μs; (5)Continuous Power Dissipation: 727mW; (6)Operating Temperature Ranges: 0 to +70℃; (7)Storage Temperature Range: -65 to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

max709lcsa features: (1)+5V, +3.3V, and +3V Versions; (2)No External Components; (3)Low Cost; (4)Precise Power-Down Reset Threshold; (5)140ms Min Power-On Reset Delay; (6)Immune to Short Negative VCC Transients; (7)8-Pin DIP, μMAX, and SO Packages; (8) Low Supply Current.

Diagrams

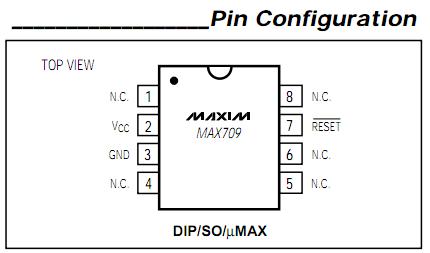

max709lcsa block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX709LCSA
MAX709LCSA

Maxim Integrated Products

Supervisory Circuits Integrated Circuits (ICs)

Data Sheet

Negotiable
MAX709LCSA+
MAX709LCSA+

Maxim Integrated Products

Supervisory Circuits Power-Supply Monitor w/Reset

Data Sheet

0-1: $1.98
1-25: $1.32
25-50: $0.95
50-250: $0.94
MAX709LCSA+T
MAX709LCSA+T

Maxim Integrated Products

Supervisory Circuits Power-Supply Monitor w/Reset

Data Sheet

0-2080: $0.85
2080-2500: $0.85
MAX709LCSA-T
MAX709LCSA-T

Maxim Integrated Products

Supervisory Circuits

Data Sheet

Negotiable
