Product Summary
The HA11235 is a synchronous signal processing system.
Parametrics
HA11235 absolute maximum ratings: (1)supply voltage, VCC: 16V; (2)operating temperature range, Topr: -20 to 75℃; (3)storage temperature range, Tstg: -55 to 125℃; (4)power dissipation (Ta=75℃), PT: 500mW; (5)output current, IO: 20mA.
Features
HA11235 features: (1)fewer external components; (2)10 Vp-p sync separator output; (3)voltage regulator for horizontal supply voltage; (4)7.5Hz/rad horizontal AFC DC loop gain; (5)output stage positive feedback eliminated by vertical oscillator astable multibibrator; (6)verical oscillator waveform used for vertical output drive; only one high-stability capacitor required for vertical stage; (7)vertical output stage stabilized by DC feedback to pin 3; (8)vertical linearity adjustment can be eliminated.

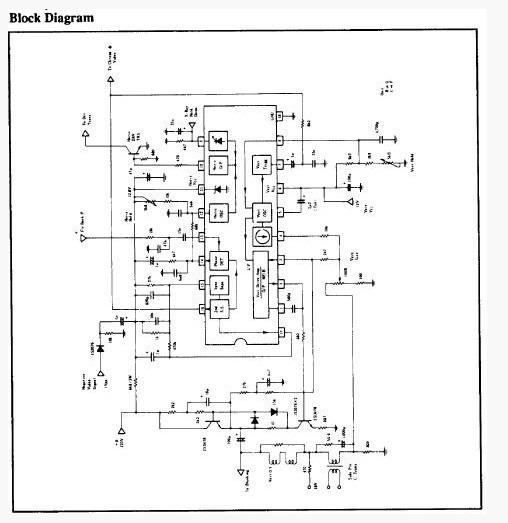

Diagrams
 |
