Product Summary

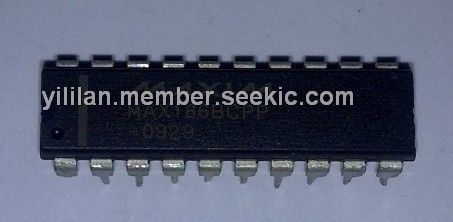

The max186bcpp is a 12-bit data-acquisition system that combines an 8-channel multiplexer, high-bandwidth track/hold, and serial interface together with high conversion speed and ultra-low power consumption. The max186bcpp operates with a single +5V supply or dual ±5V supplies. The analog inputs are software configurable for unipolar/bipolar and single-ended/differential operation. The applications of the max186bcpp are Portable Data Logging, Data-Acquisition, High-Accuracy Process Control, Automatic Testing, Robotics, Battery-Powered Instruments, Medical Instruments.
Parametrics
max186bcpp absolute maximum ratings: (1)VDD to AGND:-0.3V to +6V; (2)VSS to AGND:+0.3V to -6V; (3)VDD to VSS:-0.3V to +12V; (4)AGND to DGND:-0.3V to +0.3V; (5)CH0–CH7 to AGND, DGND:(VSS - 0.3V) to (VDD + 0.3V); (6)CH0–CH7 Total Input Current:±20mA; (7)VREF to AGND:-0.3V to (VDD + 0.3V); (8)REFADJ to AGND:-0.3V to (VDD + 0.3V); (9)Digital Inputs to DGND:-0.3V to (VDD + 0.3V); (10)Digital Outputs to DGND:-0.3V to (VDD + 0.3V); (11)Digital Output Sink Current:25mA; (12)Continuous Power Dissipation:889mW; (13)Operating Temperature Ranges:0℃ to +70℃; (14)Storage Temperature Range:-60℃ to +150℃; (15)Lead Temperature (soldering, 10sec):+300℃.
Features
max186bcpp features: (1)8-Channel Single-Ended or 4-Channel Differential Inputs; (2)Single +5V or ±5V Operation; (3)Low Power: 1.5mA (operating mode), 2μA (power-down mode); (4)Internal Track/Hold, 133kHz Sampling Rate; (5)Internal 4.096V Reference (MAX186); (6)SPI-, QSPI-, Microwire-, TMS320-Compatible 4-Wire Serial Interface; (7)Software-Configurable Unipolar or Bipolar Inputs; (8)20-Pin DIP, SO, SSOP Packages; (9)Evaluation Kit Available.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX186BCPP+ |
Maxim Integrated Products |
ADC (A/D Converters) 12-Bit 8Ch 133ksps 5.25V Precision ADC |
Data Sheet |
|
|
|||||||||||||
MAX186BCPP |
Maxim Integrated Products |
ADC (A/D Converters) Integrated Circuits (ICs) |
Data Sheet |
Negotiable |
|
