Product Summary

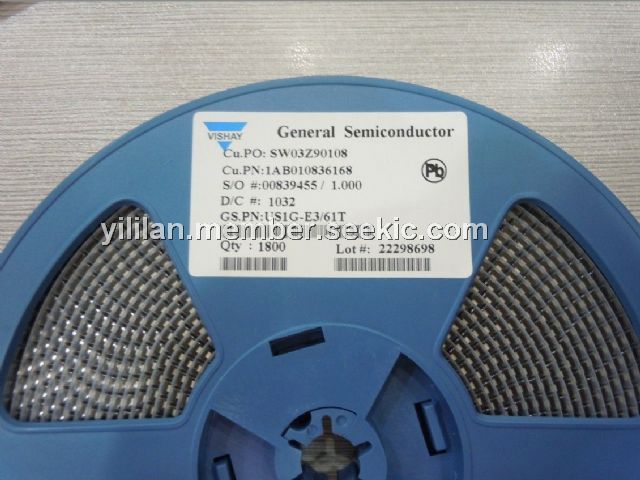

The US1G-E3/61T is a surface mount ultrafast rectifier. It is suitable for use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and
telecommunication.
Parametrics
Maximum ratings: (1)Device marking code: UG ; (2)Maximum repetitive peak reverse voltage, VRRM: 400 V; (3)Maximum RMS voltage, VRMS: 280 V; (4)Maximum DC blocking voltage, VDC: 400 V; (5)Maximum average forward rectified current at TL = 110 ℃, IF(AV): 1.0 A; (6)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load, IFSM: 30 A; (7)Operating and storage temperature range TJ, TSTG: - 55 to + 150℃.
Features
Features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Ultrafast reverse recovery time; (5)Low switching losses, high efficiency; (6)High forward surge capability; (7)Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃; (8)Solder dip 260℃, 40 s; (9)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

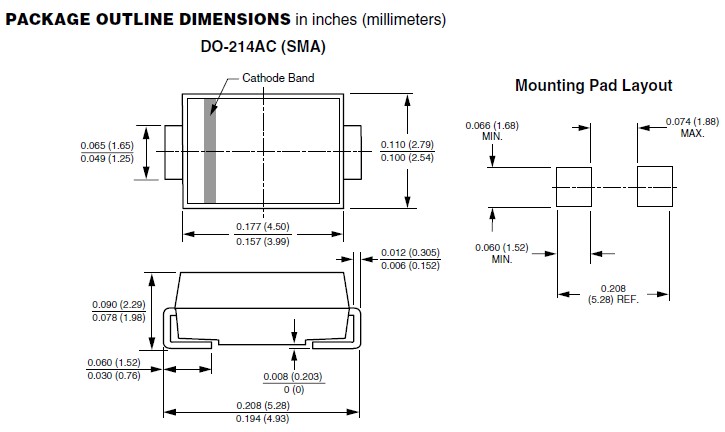

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 US1G-E3/61T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 400 Volt |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
US1G |
Taiwan Semiconductor |
TVS Diodes - Transient Voltage Suppressors 1500W 20V 5% UNI TRANSZORB-TVS |
Data Sheet |
|
|
||||||||||||
|
US1G/1 |
|
DIODE FAST 1A 400V SMA |
Data Sheet |
Negotiable |
|
||||||||||||
|
US1G/11T |
Vishay Semiconductors |
Rectifiers 400 Volt 1.0A 50ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
US1G/13T |
Vishay Semiconductors |
Rectifiers 400 Volt 1.0A 50ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
US1G/1T |
Vishay Semiconductors |
Rectifiers 400 Volt 1.0A 50ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
US1G/2FT |
Vishay Semiconductors |
Rectifiers 400 Volt 1.0A 50ns 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
