Product Summary

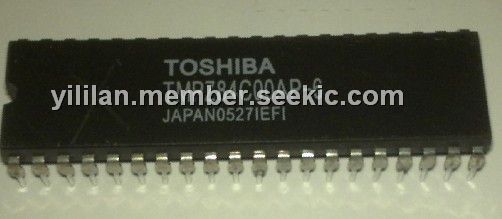

The TMPZ84C00AP-6 is an 8 bit microprocessor. It provides low power operation and high performance. Built into the TMPZ84C00A are bus control, memory control and timing control circuits in addition to paired 6 general purpose register,s accumulator, flag registers and an arithmetic and logic unit. The TMPZ84C00AP-6 is fabricated using Toshiba’s CMOS silicon gate technology.
Parametrics
TMPZ84C00AP-6 absolute maximum ratings: (1)VCC, supply voltage: -0.5 to 7V; (2)VIN, input voltage: -0.5 to VCC+0.5V; (3)PD, power dissipation: 250mW; (4)Tsolder, soldering temperature: 260℃; (5)Tstg, storage temperature: -65 to 150℃; (6)Topr, operating temperature: -40 to 85℃.
Features
TMPZ84C00AP-6 features: (1)low power consumption; (2)DC to 8MHz operation; (3)single 5V power supply; (4)powerful set of 158 instructions a vaailable; (5)power interrupt function.

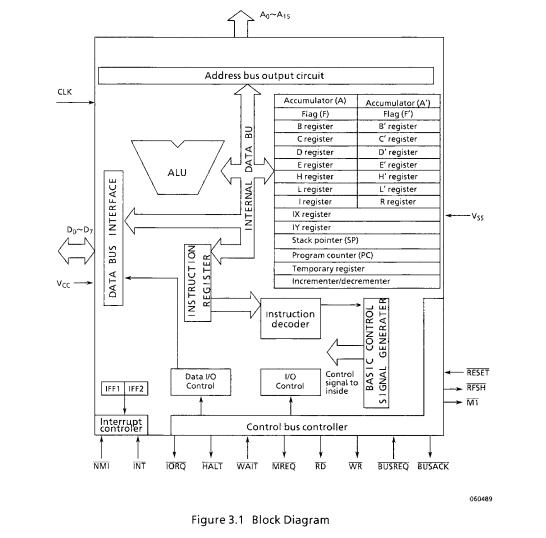

Diagrams
 |
