Product Summary

The dg406dj is a single 16-channel/differential 8-channel, CMOS analog multiplexer. The dg406dj monolithic CMOS analog multiplexer is a drop-in replacements for the popular DG506A and DG507A series devices. They each include an array of sixteen analog switches, a TTL and CMOS compatible digital decode circuit for channel selection, a voltage reference of the dg406dj for logic thresholds, and an ENABLE input for device selection when several multiplexers are present.

Parametrics

dg406dj absolute maximum ratings: (1)V+ to V-: 44.0V; (2)GND to V-: 25V; (3)Digital Inputs, VS, VD: (V-) -2V to (V+) +2V or 20mA,; (4)Whichever Occurs First Continuous Current (Any Terminal): 30mA; (5)Peak Current, S or D (Pulsed 1ms, 10% Duty Cycle Max): 100mA; (6)Temperature Range: -40℃ to 85℃; (7)Maximum Junction Temperature: 150℃; (8)Maximum Storage Temperature Range: -65℃ to 150℃; (9)Maximum Lead Temperature (Soldering 10s): 300℃.

Features

dg406dj features: (1)ON-Resistance (Max) 100 Low Power Consumption (PD) <1.2mW; (2)Fast Transition Time (Max)300ns; (3)Low Charge Injection; (4)TTL, CMOS Compatible; (5)Single or Split Supply Operation; (6)Pb-Free Plus Anneal Available (RoHS Compliant) .

Diagrams

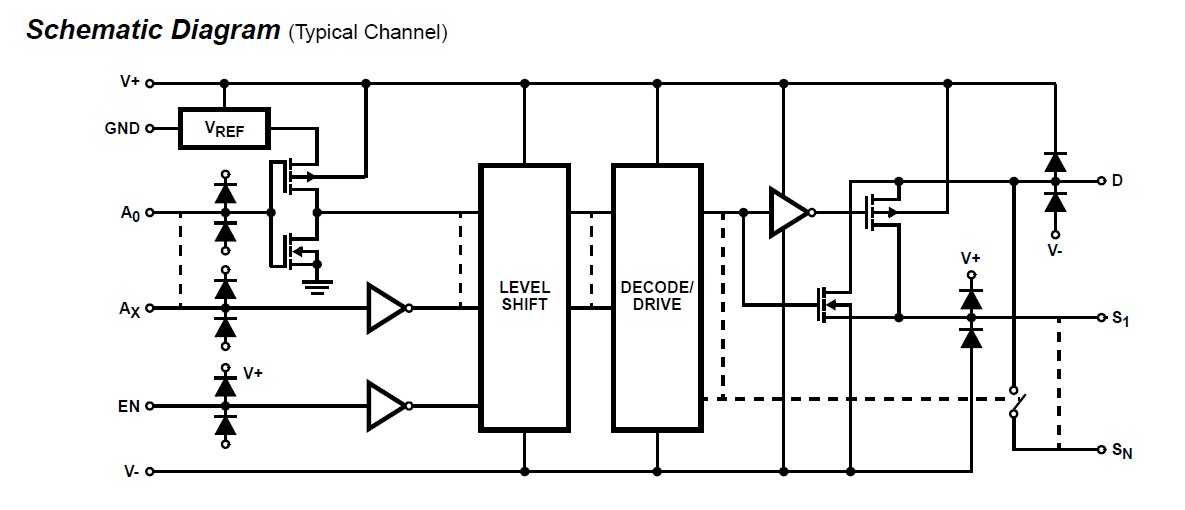

dg406dj schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DG406DJ
DG406DJ
Vishay/Siliconix
Multiplexer Switch ICs Single 16:1, 4-bit Multiplexer/MUX
Data Sheet
0-57: $3.66
57-100: $3.58
100-200: $3.46
200-500: $3.05
DG406DJ+
DG406DJ+
Maxim Integrated Products
Multiplexer Switch ICs 16:1 CMOS Analog
Data Sheet
0-1: $8.58
1-25: $5.76
25-50: $4.18
50-100: $4.12

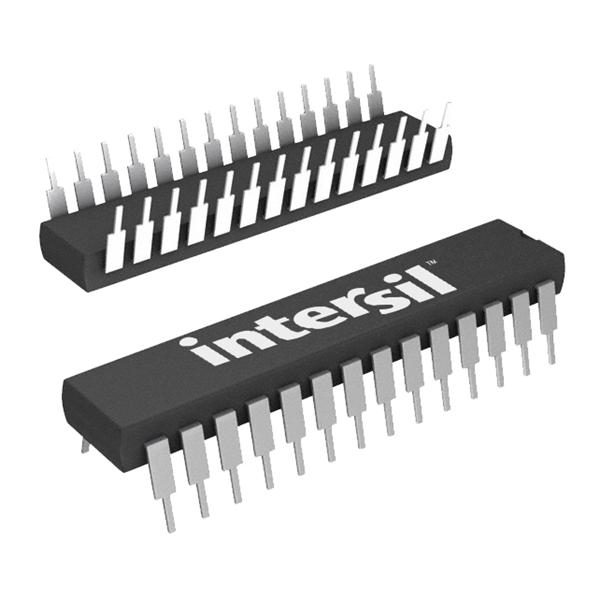

DG406DJZ
DG406DJZ
Intersil
Multiplexer Switch ICs MUX 16:1 28PDIP IND
Data Sheet
0-1: $3.43
1-25: $2.92
25-100: $2.04
100-500: $1.58
DG406DJ-E3
DG406DJ-E3
Vishay/Siliconix
Multiplexer Switch ICs Single 16:1, 4-bit Multiplexer/MUX
Data Sheet
0-1: $2.40
1-25: $2.24
25-50: $2.11
50-100: $1.90
