Product Summary

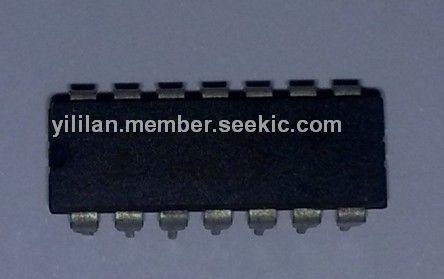

The ca3059 is a zero-voltage switch. It is a mono-lithic silicon integrated circuit designed to control a thyristor in a variety of AC power switching applications for AC input voltages of 24V, 120V, 208/230V, and 277V at 50Hz-60Hz and 400Hz.

Parametrics

ca3059 absolute maximum ratings: (1)DC Supply Voltage: 14V; (2)DC Supply Voltage (Between Terminals 2 & 8): 14V; (3)Peak Supply Current (Terminals 5 & 7): ±50mA; (4)Output Pulse Current (Terminal 4): 150mA.

Features

ca3059 features: (1)Relay Control; (2)Valve Control; (3)Synchronous Switching of Flashing Lights; (4)On-Off Motor Switching; (5)Differential Comparator with Self-Contained Power Supply for Industrial Applications; (6)Photosensitive Control; (7)Power One-Shot Control; (8)Heater Control; (9)Lamp Control.

Diagrams

ca3059 functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CA3059
CA3059

Intersil

ZERO VOLTAGE CROSSING SWITCH

Data Sheet

Negotiable
