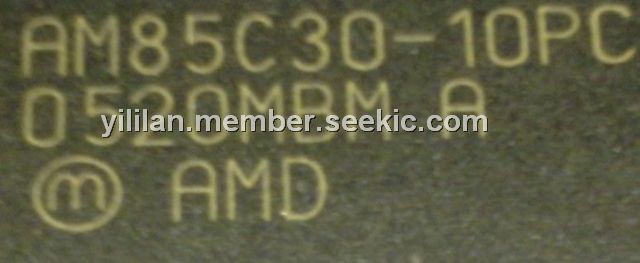

Product Summary

The AM85C30-10PC is an enhanced pin-compatible version of the popular AM85C30-16JI Communication Controller. The Enhanced Serial Communications Controller (ESCC) is a high-speed, low-power, multiprotocol communications peripheral designed for use with 8- and 16-bit microprocessors. It has two independent, full-duplex channels and functions as a serial-toparallel, parallel-to-serial converter/controller. AMD AM85C30-10PC proprietary enhancements make the Am85C30 easier to interface and more effective in high-speed applications due to a reduction in software burden and the elimination of the need for some external glue logic.

Parametrics

AM85C30-10PC absolute maximum ratings: (1)Ambient Temperature (TA): 0℃ to +70℃; (2)Supply Voltage (VCC): +5 V ± 10%; (3)Industrial (I) Devices Ambient Temperature (TA): –40℃ to +85℃; (4)Supply Voltage (VCC): 5 V ± 10%; (5)Military (M) Devices Case Temperature (TC): –55℃ to +125℃; (6)Supply Voltage (VCC): 5 V ± 10%.

Features

AM85C30-10PC features: (1)Low-power CMOS technology; (2)Piand functiocompatible with other NMOS and CMOS 8530s; (3)Easily interfaced with most CPUs; (4)Compatible with non-multiplexed bus; (5)Many enhancements over NMOS Am8530H; (6)Allows Am85C30 to be used more effectively ihigh-speed applications; (7)Improves interface capabilities.

Diagrams

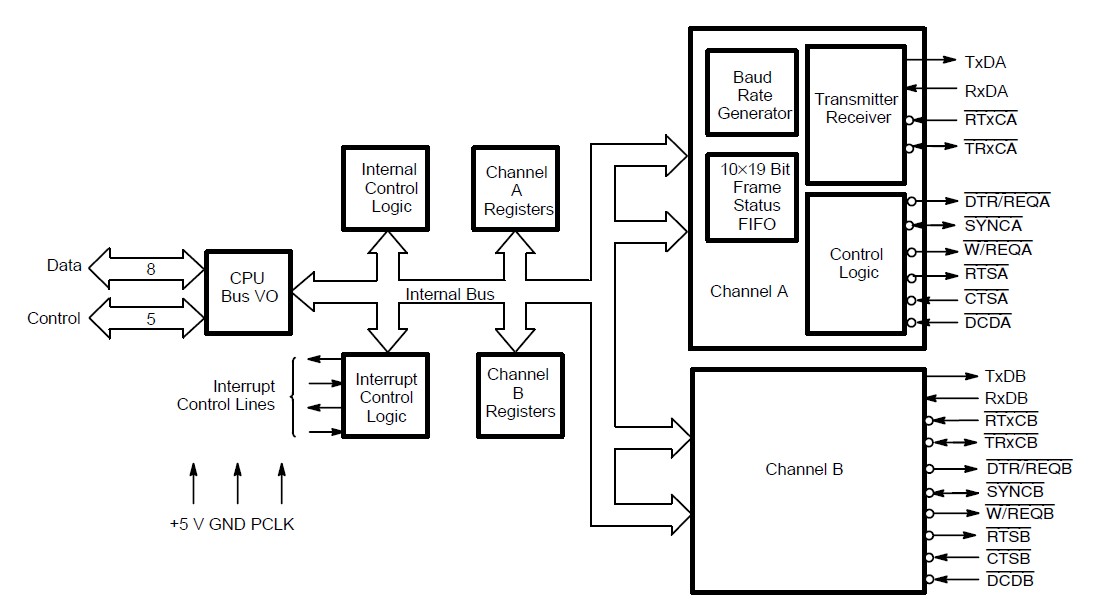

AM85C30-10PC block diagram

Am85C30
Am85C30
