Product Summary

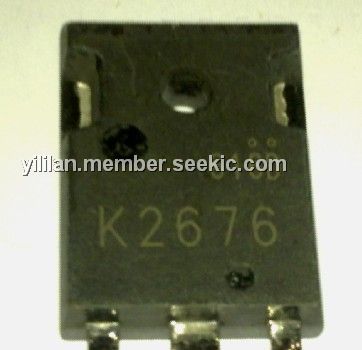

The K2676 is a power MOSFET. It is suitable for Switching power supply of AC 240V input, High voltage power supply and Inverter.

Parametrics

K2676 absolute maximum ratings: (1)Storage Temperature Tstg: -55～150℃; (2)Channel Temperature Tch: 150℃; (3)Drain-Source Voltage VDSS: 900 V; (4)Gate-Source Voltage VGSS: ±30V; (5)Continuous Drain Current(DC) ID: 10A; (6)Continuous Drain Current(Peak) IDP: 20 A; (7)Continuous Source Current(DC) IS: 10A; (8)Total Power Dissipation PT: 120 W; (9)Repetitive Avalanche Current IAR: 10A; (10)Single Avalanche Energy EAS: 260 mJ; (11)Repetitive Avalanche Energy EAR: 26mJ; (12)Mounting Torque TOR: 0.8 Nm.

Features

K2676 features: (1)Input capacitance (Ciss) is small. Especially, input capacitance at 0 biass is small; (2)The static Rds(on) is small; (3)The switching time is fast; (4)Avalanche resistance guaranteed.

Diagrams

K2676 outline dimensions
