Product Summary

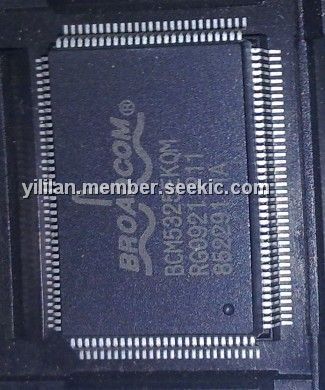

The bcm5325ekqm is a six-port managed 10/100 robo switch.
Features
bcm5325ekqm features: (1)Port-based and 802.1Q-based VLAN with 16 entries; (2)802.1d Spanning Tree; (3)Supports 802.1x EAPOL higher layer protocol; (4)Programmable storm control; (5)1K MAC addresses with automatic learning and aging; (6)Programmable per port flow control and back-pressure; (7)MII or reversed MII; (8)MDC/MDIO and SPI interfaces; (9)WAN port and protected port support; (10)Port mirroring and IGMP layer 3 snooping; (11)Internal oscillator simplifies design and reduces cost; (12)3.3V and 2.5V, power consumption is less than 1.0W; (13)BCM5325E/BCM5325U pin-to-pin compatible with BCM5325M/BCM5325 respectively; (14)128-pin MQFP package.

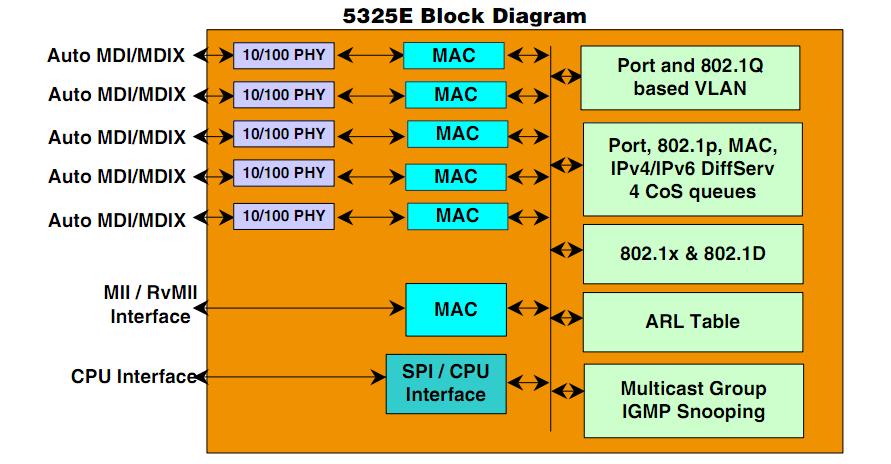

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BCM5325EKQMG |
Other |
|
Data Sheet |
Negotiable |
|
||||
