Product Summary

The sa612a is a low-power VHF monolithic double-balanced mixer with on-board oscillator and voltage regulator. It is intended for low cost, low power communication systems with signal frequencies to 500MHz and local oscillator frequencies as high as 200MHz. The mixer is a Gilbert cell multiplier configuration which provides gain of 14dB or more at 45MHz.

Parametrics

sa612a absolute maximum ratings: (1)Maximum operating voltage: 9 V; (2)Storage temperature: -65 to +150 ℃; (3)Operating ambient temperature range: -40 to +85℃.

Features

sa612a features: (1)Low current consumption; (2)Low cost; (3)Operation to 500MHz; (4)Low radiated energy; (5)Low external parts count; suitable for crystal/ceramic filter; (6)Excellent sensitivity, gain, and noise figure.

Diagrams

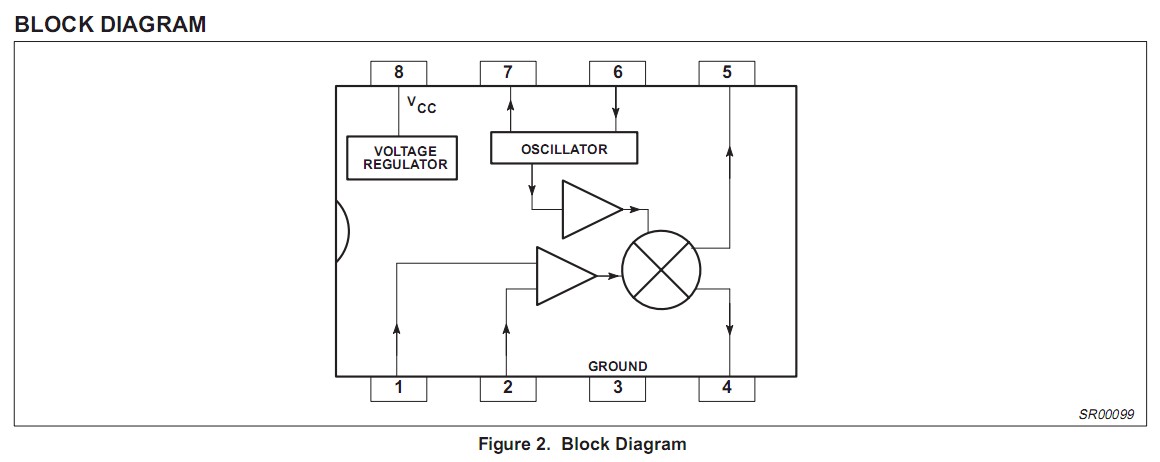

sa612a block diagram
