Product Summary

The 7406 is a TTL hex inverter buffer/driver. It features high-voltage open-collector outputs for interfacing with high-level circuits (such as MOS) or for driving high-current loads (such as lamps or relays), and also is characterized for use as inverter buffers for driving TTL inputs. The 7406 has minimum breakdown voltages of 30V. The maximum sink current is 40 mA for the SN7406DR.

Parametrics

7406 absolute maximum ratings: (1)Supply voltage, VCC: 7V; (2)Input voltage, VI: 5.5V; (3)Output voltage, VO: 30V; (4)Package thermal impedance, θJA: D package, 86℃/W; N package, 80℃/W; NS package, 76℃/W; (5)Storage temperature range, Tstg: –65℃ to 150℃.

Features

7406 features: (1)Convert TTL Voltage Levels to MOS Levels; (2)High Sink-Current Capability; (3)Input Clamping Diodes Simplify System Design; (4)Open-Collector Drivers for Indicator Lamps and Relays; (5)Inputs Fully Compatible With Most TTL Circuits.

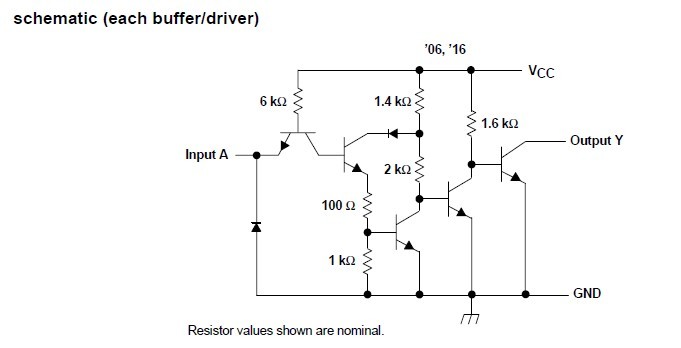

Diagrams

7406
