Product Summary

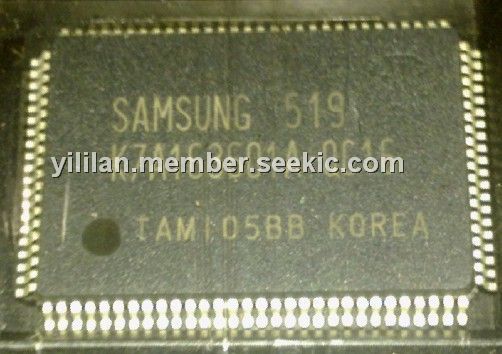

The K7A163601A-QC16 is a 18,874,368-bit Synchronous Static Random Access Memory designed for high performance second level cache of Pentium and Power PC based System. The K7A163601A-QC16 is organized as 512K(1M) words of 36(32/18) bits and integrates address and control registers, a 2-bit burst address counter and added some new functions for high performance cache RAM applications; GW, BW, LBO, ZZ. Write cycles are internally self-timed and synchronous.

Parametrics

K7A163601A-QC16 absolute maximum ratings: (1)Voltage on VDD Supply Relative to VSS VDD: -0.3 to 4.6 V; (2)Voltage on VDDQ Supply Relative to VSS VDDQ: VDD V; (3)Voltage on Input Pin Relative to VSS: VIN -0.3 to VDD+0.3 V; (4)Voltage on I/O Pin Relative to VSS: VIO -0.3 to VDDQ+0.3 V; (5)Power Dissipation PD: 1.6 W; (6)Storage Temperature TSTG: -65 to 150℃; (7)Operating Temperature: 0 to 70℃; (8)Storage Temperature Range Under Bias TBIAS: -10 to 85℃.

Features

K7A163601A-QC16 features: (1)Synchronous Operation; (2)On-Chip Address Counter; (3)Self-Timed Write Cycle; (4)On-Chip Address and Control Registers; (5)3.3V+0.165V/-0.165V Power Supply; (6)I/O Supply Voltage 3.3V+0.165V/-0.165V for 3.3V I/O or 2.5V+0.4V/-0.125V for 2.5V I/O; (7)5V Tolerant Inputs Except I/O Pins; (8)Byte Writable Function; (9)Global Write Enable Controls a full bus-width write; (10)Power Down State via ZZ Signal; (11)LBO Pin allows a choice of either a interleaved burst or a linear burst; (12)Three Chip Enables for simple depth expansion with No Data Contention only for TQFP; (13)Asynchronous Output Enable Control; (14)ADSP, ADSC, ADV Burst Control Pins; (15)TTL-Level Three-State Output; (16)100-TQFP-1420A; (17)Operating in commeical and industrial temperature range.

Diagrams

K7A163601A-QC16 block diagram
