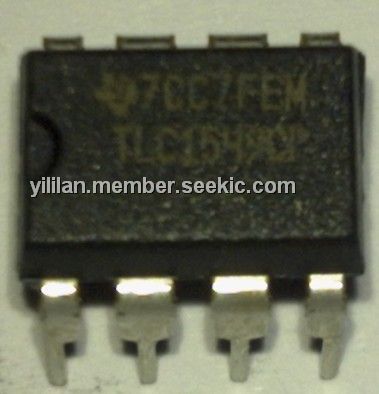

Product Summary
The TLC1549CP is a 10-bit analog-to-digital converter with serial control. The TLC1549CP has two digital inputs and a 3-state output [chip select (CS), input-output clock (I/O CLOCK), and data output (DATA OUT)] that provide a three-wire interface to the serial port of a host processor.
Parametrics
TLC1549CP absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 6.5 V; (2)Input voltage range, VI (any input): –0.3 V to VCC + 0.3 V; (3)Output voltage range, VO: –0.3 V to VCC + 0.3 V; (4)Positive reference voltage, Vref+: VCC + 0.1 V; (5)Negative reference voltage, Vref: –0.1 V; (6)Peak input current (any input): ±20 mA; (7)Peak total input current (all inputs): ±30 mA.
Features
TLC1549CP features: (1)10-Bit-Resolution A/D Converter; (2)Inherent Sample and Hold; (3)Total Unadjusted Error ±1 LSB Max; (4)On-Chip System Clock; (5)Terminal Compatible; (6)CMOS Technology.

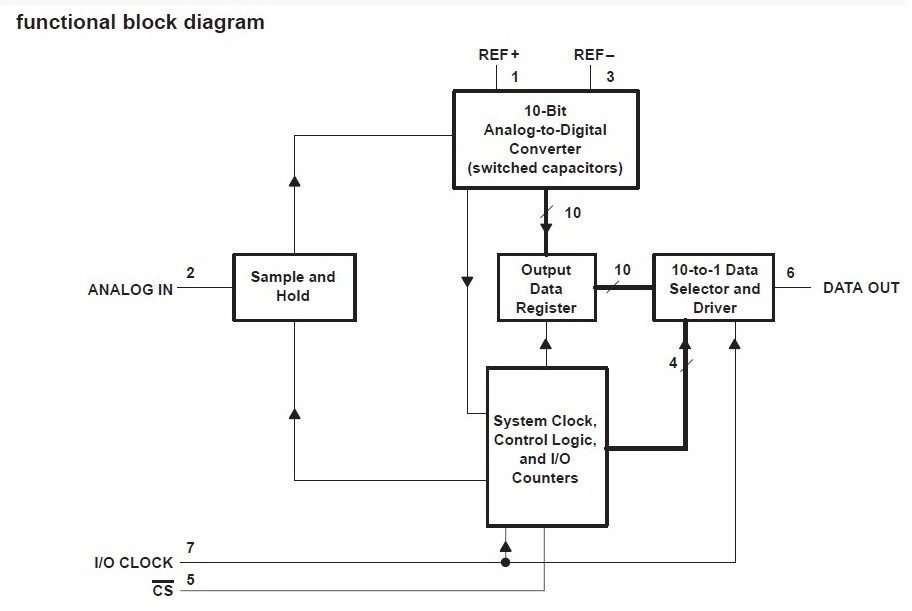

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC1549CP |
Texas Instruments |
ADC (A/D Converters) Single In Serial |
Data Sheet |
|
|
||||||||||||
|
TLC1549CPE4 |
Texas Instruments |
ADC (A/D Converters) 10-Bit 38 kSPS Serial Out |
Data Sheet |
|
|
||||||||||||
