Product Summary

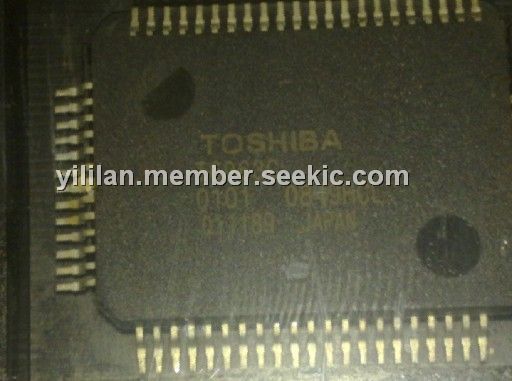

The T6963C is an LCD controller designed to be used with LCD control driver LSIs and data display memories. The T6963C has an 8-bit parallel data bus and control lines for reading or writing through an MPU interface. It can be directly connected to a TMPZ-80. It has a 128-word character generator ROM which can control an external display RAM of up to 64 Kbytes. Allocation of text, graphics and external character generator RAM can be made easily and the display window can be moved freely within the allocated memory range.
Parametrics
T6963C absolute maximum ratings: (1)Supply Voltage VDD (Note): 0.3 to 7.0 V; (2)Input Voltage VIN (Note): 0.3 to VDD + 0.3 V; (3)Operating Temperature: 20 to 70 ℃; (4)Storage Temperature: 55 to 125℃.
Features
T6963C features: (1)Display format (pin.selectable); (2)Character font (pin.selectable); (3)Display duty: 1 / 16 to 1 / 128; (4)A 128-word character generator ROM (code 0101) T6963CFG-0101 is built in as standard; (5)External display memory : 64 KB Max; (6)Read or Write operations from the CPU do not disturb the display; (7)A crystal oscillator circuit is built in. The oscillation frequency is adjusted according to the display size. If using an external clock, use the XI pin as the clock input. (XO open.); (8)Toshiba LCD driver LSIs (other than these with a built-in RAM) can be connected to the device; (9)External display RAM must be static RAM. The T6963CFG cannot refresh D-RAM.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 T6963C |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
T6963CFG |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
T6963CFG-0101 |
Other |
|
Data Sheet |
Negotiable |
|
||||
