Product Summary

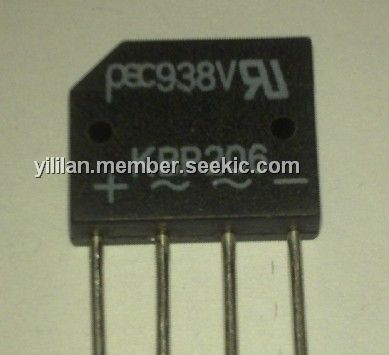

The KBP206 is a silicon bridge rectifier.
Parametrics
KBP206 absolute maximum ratings: (1)maximum recurrent peak reverse voltage, VRRM: 600V; (2)maximum RMS bridge input voltage, VRMS: 420V; (3)maximum DC blocking votlage, VDC: 600V; (4)maximum average forward current, IF(AV): 2A; (5)peak forward surge current, IFSM: 60A; (6)maximum forward voltage drop per element, VF: 1.1V; (7)maximum reverse current, IR: 5uA; (8)operating temperature range, Tj: -50 to 125℃; (9)storage temperature range, Tstg: -50 to 150℃.
Features
KBP206 features: (1)Plastic material used carries Underwriters Laboratory Recognition; (2)Surge overload rating : 60 amperes peak; (3)Exceeds environmental standards of MIL-STD-19500; (4)Ideal for printed circuit board; (5)In compliance with EU RoHS 2002/95/EC directives.

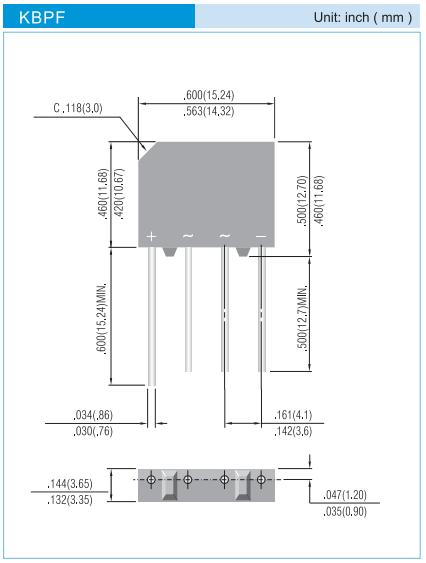

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KBP206 |
GeneSiC Semiconductor |
Bridge Rectifiers 600V 2A Bridge Rectifier |
Data Sheet |
|
|
||||||||||||
|
KBP206G |
Diodes Inc. |
Bridge Rectifiers 2.0A 600V |
Data Sheet |
|
|
||||||||||||
|
KBP206G-BP |
Micro Commercial Components (MCC) |
Bridge Rectifiers SNGL Phase 600V 2A |
Data Sheet |
|
|
||||||||||||
