Product Summary

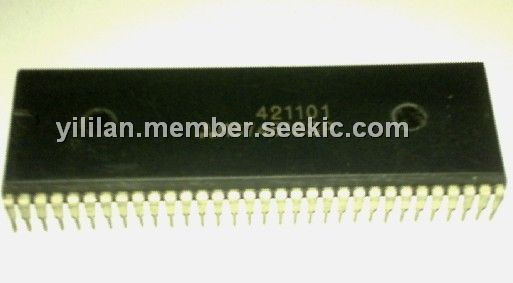

The m37451ssp is a single chip microcomputer designed with CMOS technology. It is suitable for office automation equipement and control devices. The low power consumption made by the use of a CMOS process makes it especially suitable for battery powered devices requiring low power consumption. The m37451ssp also has a unique feature that enables it to be used as a slave microcomputer.

Parametrics

m37451ssp absolute maximum ratings: (1)VCC, power supply voltage: -0.3 to 7V; (2)Vi, input voltage: -0.3 to 7V; (3)PD, power dissipation: 100mW; (4)Topr, operating temperature: -20 to 85℃; (5)Tstg, storage temperature: -40 to 125℃.

Features

m37451ssp features: (1)basic machine language instructions; (2)the minimum instruction execution time: 0.64us; (3)power source voltage: 5V±10%; (4)power dissipation: 40mW; (5)interrupt: 15 events; (6)master CPU bus interface 1 byte; (7)16-bit timers.

Diagrams

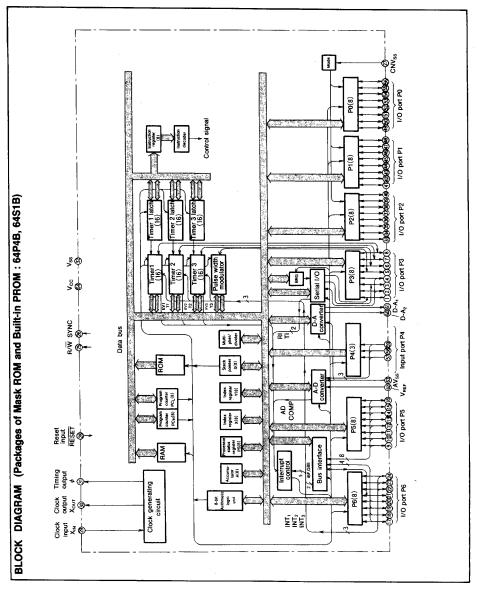

m37451ssp block diagram
