Product Summary

The CDRH6D38NP-8R7NC is a SMD power inductor. It is ideally used in Game machine, HDD, Notebook PC, Projector, PDA, etc as DC-DC converter inductors.

Parametrics

CDRH6D38NP-8R7NC absolute maximum ratings: (1)Package/Case 7 × 7 × 4; (2)Type Power; (3)Inductance 8.7 uH; (4)Maximum DC Current 2.2 A; (5)Tolerance 30 %; (6)Maximum DC Resistance 34 mOhm; (7)Core Material Ferrite; (8)Product Height 4 mm.

Features

CDRH6D38NP-8R7NC features: (1)Ferrite drum core construction; (2)Magnetically shielded; (3)L×W×H:7.0×7.0×4.0 mm Max; (4)Product weight: 0.6g(Ref.); (5)Moisture Sensitivity Level: 1; (6)RoHS compliance; (7)Halogen Free available.

Diagrams

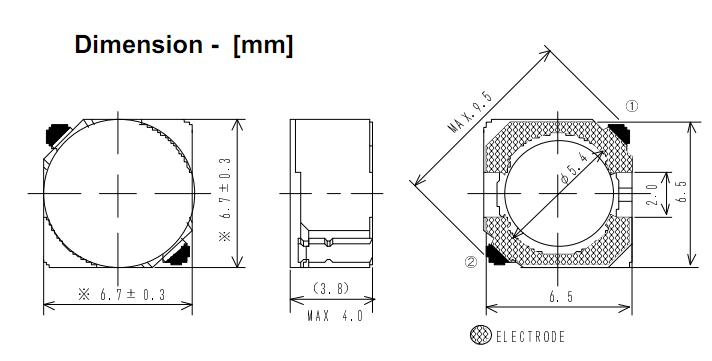

CDRH6D38NP-8R7NC dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CDRH6D38NP-8R7NC
CDRH6D38NP-8R7NC
Sumida
Power Inductors SMD Low Profile Inductor Shielded
Data Sheet
Negotiable
