Product Summary
The tlv0838i is an 8-bit successive-approximation analog-to-digital converter, each with an input-configurable multichannel multiplexer and serial input/output. The tlv0838i (4-channel) multiplexer is software-configured for single-ended or differential inputs as well as pseudodifferential input assignments. The tlv0838i is characterized for operation from 0℃ to 70℃.
Parametrics
tlv0838i absolute maximum ratings: (1)Supply voltage, VCC: 6.5 V; (2)Input voltage range: Logic: –0.3 V to VCC + 0.3 V; Analog: –0.3 V to VCC+ 0.3 V; (3)Input current, II: ±5 mA; (4)Total input current: ±20 mA; (5)Operating free-air temperature range, TA: C suffix: 0℃ to 70℃; I suffix: –40℃ to 85℃; (6)Storage temperature range, Tstg: –65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package: 260℃.
Features
tlv0838i features: (1)8-Bit Resolution; (2)2.7-V to 3.6-V VCC; (3)Easy Microprocessor Interface or Stand-Alone Operation; (4)Operates Ratiometrically or With VCC Reference; (5)4- or 8-Channel Multiplexer Options With Address Logic; (6)Input Range 0 V to VCC With VCC Reference; (7)Remote Operation With Serial Data Link; (8)Inputs and Outputs Are Compatible With TTL and MOS; (9)Conversion Time of 32 ms at f(CLK) = 250 kHz; (10)Functionally Equivalent to the ADC0834 and ADC0838 at 3-V Supply Without the Internal Zener Regulator Network; (11)Total Unadjusted Error: ±1 LSB.

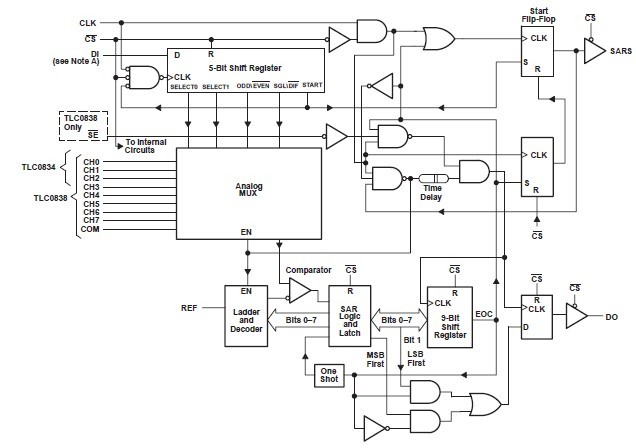

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TLV0838I |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TLV0838IDW |
Texas Instruments |
ADC (A/D Converters) 8bit A/D |
Data Sheet |
|
|
|||||||||||||
TLV0838IDWG4 |
Texas Instruments |
ADC (A/D Converters) 8bit A/D |
Data Sheet |
|
|
|||||||||||||
TLV0838IDWR |
Texas Instruments |
ADC (A/D Converters) 3-Volt 8-Bit ADC |
Data Sheet |
|
|
|||||||||||||
TLV0838IDWRG4 |
Texas Instruments |
ADC (A/D Converters) 3-Volt 8-Bit ADC |
Data Sheet |
|
|
|||||||||||||
TLV0838IN |
Texas Instruments |
ADC (A/D Converters) 8bit A/D |
Data Sheet |
Negotiable |
|
|||||||||||||
TLV0838IPWRG4 |
Texas Instruments |
ADC (A/D Converters) 3-Volt 8-Bit ADC |
Data Sheet |
|
|
|||||||||||||
TLV0838IPWR |
Texas Instruments |
ADC (A/D Converters) 3-Volt 8-Bit ADC |
Data Sheet |
|
|
