Product Summary

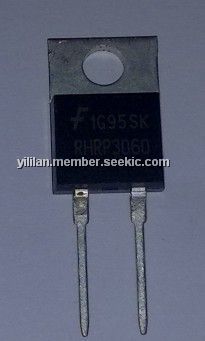

The rhrp3060 is a hypersast diode with soft recovery characteristics (trr < 40ns). The rhrp3060 has half the recovery time of ultrafast diodes and are of silicon nitride passivated ion-implanted epitaxial planar construction. The rhrp3060 is intended for use as freewheeling/clamping diodes and rectifiers in a variety of switching power supplies and other power switching applications. Its low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistors. The applications of the rhrp3060 are Switching Power Supplies, Power Switching Circuits and General Purpose.
Parametrics
rhrp3060 absolute maximum ratings: (1)VRRM Peak Repetitive Reverse Voltage: 600 V; (2)VRWM Working Peak Reverse Voltage: 600 V; (3)VR DC Blocking Voltage: 600 V; (4)IF(AV) Average Rectified Forward Current: 30 A; (5)IFRM Repetitive Peak Surge Current (Square Wave, 20KHz): 70 A; (6)IFSM Nonrepetitive Peak Surge Current: 325 A; (7)PD Maximum Power Dissipation: 125 W; (8)EAVL Avalanche Energy: 20 mJ; (9)TJ, TSTG Operating and Storage Temperature: -65 to 175℃.
Features
rhrp3060 features: (1)Hyperfast with Soft Recovery: <40ns; (2)Operating Temperature: 175℃; (3)Reverse Voltage Up To: 600V; (4)Avalanche Energy Rated; (5)Planar Construction.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RHRP3060 |
Fairchild Semiconductor |
Rectifiers 30A 600V |
Data Sheet |
|
|
||||||||||||
|
RHRP3060_Q |
Fairchild Semiconductor |
Rectifiers 30A 600V |
Data Sheet |
Negotiable |
|
||||||||||||
