Product Summary

The op295g is a dual/quad rail-to-rail operational amplifier. Rail-to-rail output swing combined with dc accuracy are the key features of the op295g. By using a bipolar front end, lower noise and higher accuracy than that of CMOS designs has been achieved. Both input and output ranges include the negative supply, providing the user zero-in/zero-out capability. For users of 3.3 volt systems such as lithium batteries, the op295g is specified for three volt operation. Applications include: Battery-operated instrumentation, Servo amplifiers, Actuator drives, Sensor conditioners, Power supply control.

Parametrics

op295g absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±18 V; (3)Differential Input Voltage: +36 V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range P, S Package: –65℃ to +150℃; (6)Operating Temperature Range: –40℃ to +125℃; (7)Junction Temperature Range, P, S Package: –65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 Sec): +300℃.

Features

op295g features: (1)Rail-to-Rail Output Swing; (2)Single-Supply Operation: +3 V to +36 V; (3)Low Offset Voltage: 300 μV; (4)Gain Bandwidth Product: 75 kHz; (5)High Open-Loop Gain: 1000 V/mV; (6)Unity-Gain Stable; (7)Low Supply Current/Per Amplifier: 150 uA max.

Diagrams

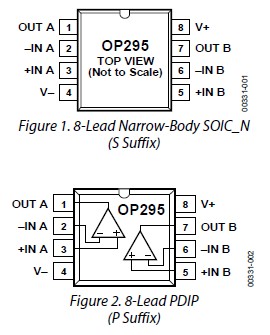

op295g diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OP295GP
OP295GP

IC OPAMP GP R-R 85KHZ DUAL 8DIP
Data Sheet
0-100: $2.60
OP295GPZ
OP295GPZ

IC OPAMP GP R-R 85KHZ DUAL 8DIP
Data Sheet
0-1: $3.14
1-10: $2.81
10-25: $2.53
25-100: $2.30
100-250: $2.08
250-500: $1.86
500-1000: $1.57
1000-2500: $1.50
OP295GSZ
OP295GSZ

IC OPAMP GP R-R 85KHZ DUAL 8SOIC
Data Sheet
0-1: $3.08
1-10: $2.75
10-100: $2.26
100-250: $2.04
250-500: $1.83
500-1000: $1.54
1000-2500: $1.47
OP295GS-REEL
OP295GS-REEL

IC OPAMP GP R-R 85KHZ DUAL 8SOIC
Data Sheet
0-2500: $1.66
OP295GS-REEL7
OP295GS-REEL7

IC OPAMP GP R-R 85KHZ DUAL 8SOIC
Data Sheet
0-1000: $1.74
OP295GS
OP295GS

IC OPAMP GP R-R 85KHZ DUAL 8SOIC
Data Sheet
0-1: $3.48
OP295GSZ-REEL
OP295GSZ-REEL

IC OPAMP GP R-R 85KHZ DUAL 8SOIC
Data Sheet
0-2500: $1.47
OP295GSZ-REEL7
OP295GSZ-REEL7

IC OPAMP GP R-R 85KHZ DUAL 8SOIC
Data Sheet
0-1000: $1.54
