Product Summary

The cx24123-118 is a Low-power QPSK demodulator for worldwide satellite set-top box applications. Conexant’s broadband communications portfolio includes a comprehensive suite of semiconductor solutions that enable the digital home and information network. The cx24123-118 is a DVB, DSS, and DCII compliant demodulator and Forward Error Correction (FEC) decoder. When combined with a satellite tuner, such as the CX24109 tuner, the cx24123-118 provides a complete broadband satellite front-end solution capable of operating from 1 to 45 Msps.

Features

cx24123-118 features: (1)DVB/DSS/DCII - compliant; (2)Symbol rates: 1 to 45 Msps; (3)Automatic acquisition; (4)Low-power design; (5)Internal SNR and BER monitors; (6)DiSEqC Level 2.x compatible; (7)Low-Noise Block Converter (LNB) control ; (8)Available in both 80 and 64 pin TQFP.

Diagrams

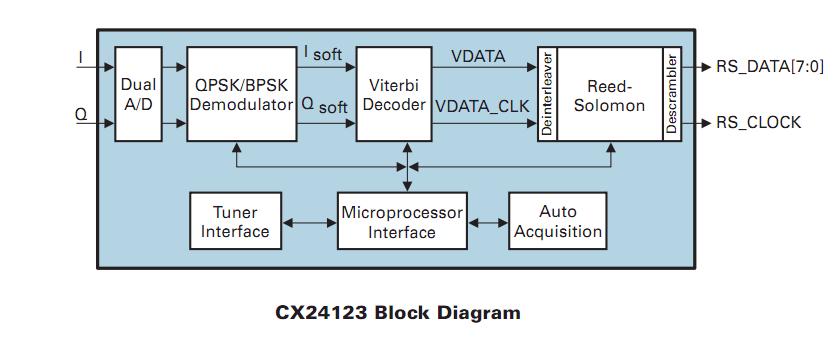

cx24123-118 block diagram
