Product Summary
The ES1C-E3/61T is a surface mount ultrafast plastic rectifier. With glass passivated chip junction, this module has ultrafast recovery times for high efficiency. When it concerned to the application, this device is widely used in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.
Parametrics
Absolute maximum ratings:(1)Device marking code: EC; (2)Maximum repetitive peak reverse voltage, VRRM: 150V; (3)Maximum RMS voltage, VRMS: 105V; (4)Maximum DC blocking voltage, VDC: 150V; (5)Maximum average forward rectified current (Fig. 1), IF(AV): 1A; (6)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load, IFSM: 30A; (7)Operating junction and storage temperature range, TJ, TSTG: - 55 to + 150 °C.
Features
Features:(1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Ultrafast recovery times for high efficiency; (5)Low forward voltage, low power losses; (6)High forward surge capability; (7)Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C; (8)Solder dip 260 °C, 40 s; (9)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

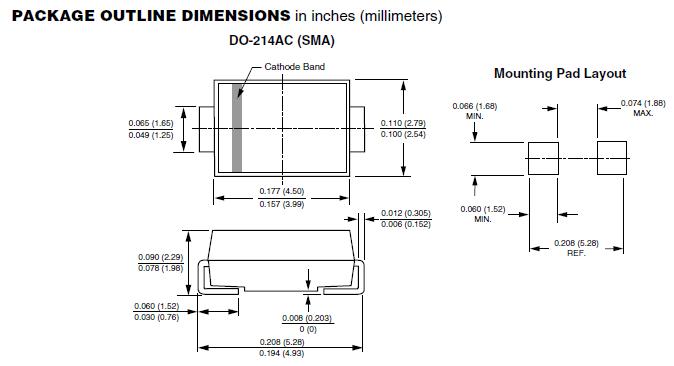

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ES1C-E3/61T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 150 Volt |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
ES1C |
Fairchild Semiconductor |
Rectifiers 1.0a Rectifier UF Recovery |
Data Sheet |
|
|
||||||||||||
|
ES1C/11T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 150 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
ES1C/13T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 150 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
ES1C/1T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 150 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
ES1C/2GT |
Vishay Semiconductors |
Rectifiers 1.0 Amp 150 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
ES1C/5AT |
Vishay Semiconductors |
Rectifiers 1.0 Amp 150 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
