Product Summary
The AXK7L34227G is a narrow-pitch connector for board-to-FPC connection. It achieves both a 0.4 mm pitch and an ultra low profile of 0.9 mm high when mated, contributing to further thickness reduction of products. The AXK7L34227G improved mating strength between the socket and header. This deivce is used in cellular Socket Header phones, DVD, DSC, etc.
Parametrics
Electrical characteristics: (1)Rated current: 0.3A/terminal (Max. 5 A at total terminals); (2)Rated voltage: 60V AC/DC; (3)Breakdown voltage: 150V AC for 1 min. at Rated voltage is applied for one minute and check for short circuit or damage with a detection current of 1mA; (4)Insulation resistance: Min. 1,000MΩ (Initial) at Using 250V DC megger (applied for 1 min.); (5)Contact resistance: Max. 90mΩ at Based on the contact resistance measurement method specified by JIS C 5402.
Features
Features:(1)The lowest profile class among twopiece connectors in the world (Mated height: 0.9mm); (2)Strong resistance to adverse environments; (3)Improved mating strength between the socket and header; (4)Easy to design product circuits; (5)Connectors for inspection available.

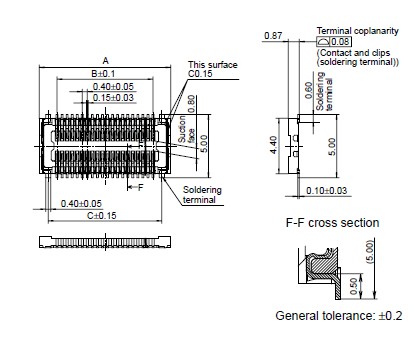

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AXK7L34227G |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors CONN SOCKET FPC 34 POS 0.4mm |
Data Sheet |
|
|
|||||||||||||
