Product Summary

The lt1056 is a JFET input operational amplifier. It combines precision specifications with high speed performance. The applications of the lt1056 inlcude n Precision, High Speed Instrumentation, Logarithmic Amplifiers, D/A Output Amplifiers, Photodiode Amplifiers, Frequency-to-Voltage Converters and Fast, Precision Sample-and-Hold.

Parametrics

lt1056 absolute maximum ratings: (1)Supply Voltage: ±20V; (2)Differential Input Voltage: ±40V; (3)Input Voltage: ±20V; (4)Operating Temperature Range: –55 to 125℃; (5)Storage Temperature Range: –65 to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

lt1056 features: (1)Guaranteed Offset Voltage 150μV Max –55 to 125℃ 500μV Max; (2)Guaranteed Drift 4μV/℃ Max; (3)Guaranteed Bias Current 70℃ 150pA Max; 125℃ 2.5nA Max; (4)Guaranteed Slew Rate 12V/μs Min.

Diagrams

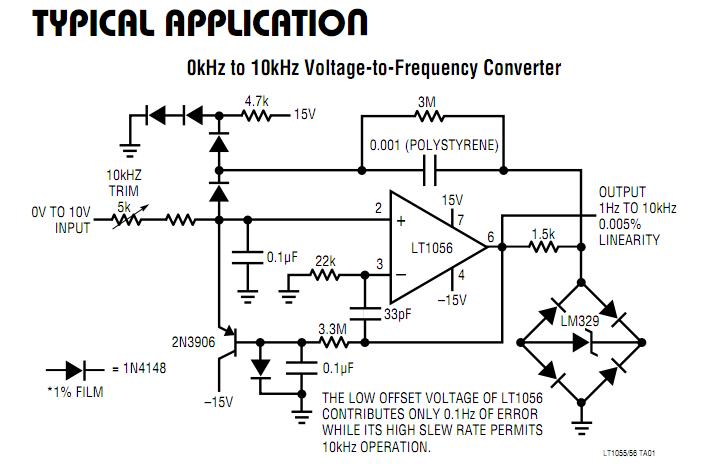

lt1056 typical application

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LT1056
LT1056
Other

Data Sheet
Negotiable
LT1056ACH
LT1056ACH
Linear Technology
IC PREC OPAMP JFET-IN HS TO-5-8
Data Sheet
Negotiable
LT1056CN8#PBF
LT1056CN8#PBF

IC PREC OP-AMP JFET HI-SPD 8-DIP
Data Sheet
0-1: $2.29
1-25: $1.52
25-100: $1.17
LT1056CN8
LT1056CN8

IC PREC OP-AMP JFET HI-SPD 8-DIP
Data Sheet
0-3300: $1.17
LT1056S8#PBF
LT1056S8#PBF

IC PREC OP-AMP JFET HI-SPD 8SOIC
Data Sheet
0-1: $2.83
1-25: $1.88
25-100: $1.50
LT1056S8
LT1056S8

IC PREC OP-AMP JFET HI-SPD 8SOIC
Data Sheet
0-2700: $1.50
LT1056S8#TR
LT1056S8#TR

IC OPAMP JFET PREC HI SPD 8SOIC
Data Sheet
0-5000: $1.53
LT1056S8#TRPBF
LT1056S8#TRPBF

IC PREC OP-AMP JFET HI-SPD 8SOIC
Data Sheet
0-2500: $1.53
