Product Summary

The ad8005 is an ultralow power, high-speed amplifier with a wide signal bandwidth of 170MHz and slew rate of 280 V/μs. This performance is achieved while consuming only 400 μA of quiescent supply current. These features increase the operating time of high-speed battery-powered systems without reducing dynamic performance. The applications of the ad8005 are gnal Conditioning, A/D Buffer and Power-Sensitive, High-Speed Systems.

Parametrics

ad8005 absolute maximum ratings: (1)Supply Voltage: 12.6 V; (2)Internal Power Dissipation: 1.3 Watts; (3)Small Outline Package (R): 0.75 Watts; (4)SOT-23-5 Package (RT): 0.5 Watts; (5)Input Voltage (Common Mode): ±VS ± 1V; (6)Differential Input Voltage: ±3.5 V; (7)Output Short Circuit Duration: Observe Power Derating Curves; (8)Storage Temperature Range: –65 to +125℃; (9)Operating Temperature Range (A Grade): –40 to +85℃; (10)Lead Temperature Range (Soldering 10 sec): +300℃.

Features

ad8005 features: (1)Ultralow Power; (2)High Speed; (3)Low Distortion/Noise; (4)Good Video Specifications (RL = 1 kV, G = +2).

Diagrams

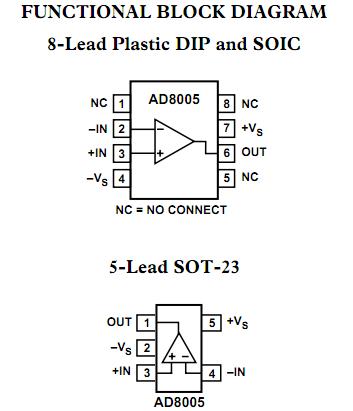

ad8005 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD8005ANZ
AD8005ANZ


IC OPAMP CF ULP LDIST 10MA 8DIP

Data Sheet

0-1: $2.38
1-10: $2.12
10-25: $1.91
25-100: $1.74
100-250: $1.57
250-500: $1.41
500-1000: $1.19
1000-2500: $1.13
AD8005ARZ-REEL7
AD8005ARZ-REEL7


IC OPAMP CF ULP LDIST 10MA 8SOIC

Data Sheet

0-1000: $1.19
AD8005ARZ-REEL
AD8005ARZ-REEL


IC OPAMP CF ULP LDIST 10MA 8SOIC

Data Sheet

0-2500: $1.13
AD8005ARZ
AD8005ARZ


IC OPAMP CF ULP LDIST 10MA 8SOIC

Data Sheet

0-1: $2.38
1-10: $2.12
10-100: $1.74
100-250: $1.57
250-500: $1.41
500-1000: $1.19
1000-2500: $1.13
AD8005ARTZ-REEL7
AD8005ARTZ-REEL7


IC OPAMP CF ULP LDIST SOT23-5

Data Sheet

0-1: $2.23
1-10: $1.99
10-25: $1.79
25-100: $1.63
100-250: $1.47
250-500: $1.32
500-1000: $1.11
AD8005ARTZ-REEL
AD8005ARTZ-REEL

Analog Devices Inc

IC OPAMP CURR FEEDBK LP SOT-23-5

Data Sheet

1-10000: $1.05
AD8005ARTZ-R2
AD8005ARTZ-R2

Analog Devices Inc

IC OPAMP CURR FEEDBK LP SOT-23-5

Data Sheet

1-250: $1.64
AD8005ART-REEL7
AD8005ART-REEL7

Analog Devices Inc (VA)

IC OPAMP CURR FEEDBK LP SOT-23

Data Sheet

Negotiable
