LM3526MX-H

Bus standard power switch, Notebook, in-rush current limiter

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.28~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.28~0.30

PartNumber:: LM3526MX-H

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rainbow's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-09

From Other Seller

Part Number:LM3526MX-H
US $0.28 - 0.30
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

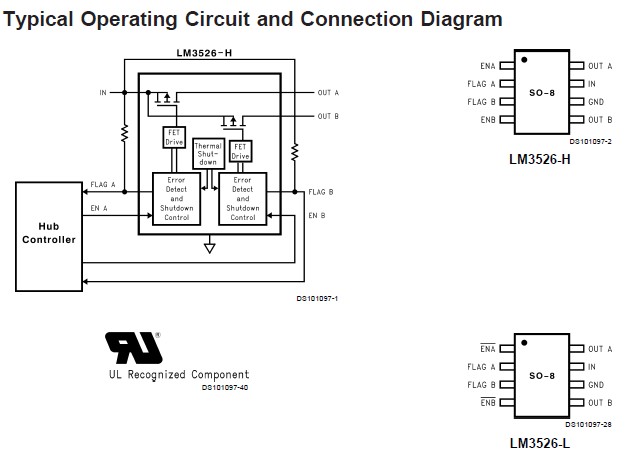

The LM3526MX-H provides Universal Serial Bus standard power switch and over-current protection for all host port applications.The dual port device is ideal for Notebook and desktop PCs that supply power to more than one port. The LM3526MX-H accepts an input voltage between 2.7V and 5.5V allowing use as a device-based in-rush current limiter for 3.3V USB peripherals, as well as Root and Self-Powered Hubs at 5.5V.

Parametrics

Absolute maximum ratings:(1)Supply Voltage: 0.3V to 6V; (2)Output Voltage: 0.3V to 6V; (3)Voltage at All Other Pins: 0.3V to 5.5V; (4)Power Dissipation (TA = 25°C)(Note 2): 700 mW; (5)TJMAX (Note 2): 160°C; (6)Supply Voltage Range: 2.7V to 5.5V; (7)Operating Ambient Range: 40°C to 85°C; (8)Operating Junction Temperature Range: 40°C to 125°C; (9)Storage Temperature Range: 65°C to +150°C.

Features

Features:(1)1 ms fault flag delay filters Hot-Plug events; (2)Smooth turn-oeliminates in-rush induced voltage drop; (3)UL recognized component: REF# 205202; (4)1A nominal short circuit output current protects PC power supplies; (5)Thermal shutdowprotects device idirect short condition; (6)500mA minimum continuous load current; (7)Small SO-8 package minimizes board space; (8)2.7V to 5.5V input voltage range; (9)140 mW Max. switch resistance; (10)1 μA Max. standby current; (11)200 μA Max. operating current; (12)Under-voltage lockout (UVLO).
