Product Summary
The tb62707f is an 8 bit PIPO (Pallalel In , Pallalel Out) constant current driver. The tb62707f is specifically designed for LED and LED DISPLAY constant current drivers. This constant current output is able to set up external resistor (IOUT = 90 mA MAX.). This IC is monolithic integrated circuit designed to be used together with Bi-CMOS process. The tb62707f consists of 8bit latches, AND-GATE and Constant Current Drivers.
Parametrics
tb62707f absolute maximum ratings: (1)Supply Voltage VCC: 7.0 V; (2)Input Voltage VIN: -0.3~VDD + 0.3 V; (3)Output Current IO: 90.0 mA; (4)Output Voltage VO: -0.3~17.0 V; (5)GND Terminal Current IGND: 720 mA; (6)Power Dissipation PD: 780mW; (7)Operating Temperature Topr: -40~85℃; (8)Storage Temperature Tstg: -55~150℃.
Features
tb62707f features: (1)Constant Current Output: Can set up all output current with one resistor for 5 to 90mA; (2)5 V CMOS Compatible Input; (3)Package: SSOP24-P-300.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

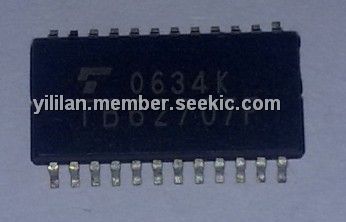

 TB62707F |
Other |
|
Data Sheet |
Negotiable |
|
||||
